Direct Policy Optimization

Direct Policy Optimization#

TLDR

  • DPO updates the model policy using pairwise preferences, rather than individual generation rewards.

  • Direct training on pairwise preferences has a couple of benefits:

    • From a human rating perspective, for some tasks it’s simpler and cheaper to prefer one of two outputs, rather than rank one on a numerical scale.

    • From a training perspective, this avoids the noisy and expensive process of training a separate reward model.

  • This is the full DPO Implementation with associated tests.

  • In this notebook we:

    • Synthetically generate DPO preference pairs from a reward function.

    • Train our policy model with the DPO update rule.

Still under review

The information in here should be correct, but I’m having a couple of my colleagues check it over just to be sure. If you notice anything wrong open up an issue ticket, contributions are welcome.

Overview#

This notebook runs the DPO training loop. It loads a pre-trained model from our food example and uses it for both the initial policy and the reference policy. It then runs the DPO algorithm to optimize the policy based on a synthetically generated preference dataset.

DPO was introduced in the paper “Direct Preference Optimization: Your Language Model is Secretly a Reward Model” RSM+24.

General Methodology#

DPO takes pairwise preferences (chosen vs. rejected responses) and directly optimizes the policy to increase the likelihood of generating the chosen responses. Similar to other RL methods, it uses a policy network that is being trained and a reference (or anchor) network that helps stabilize the updates and prevents the policy from deviating too far from its original behavior.

../../_images/DPODiagram.png

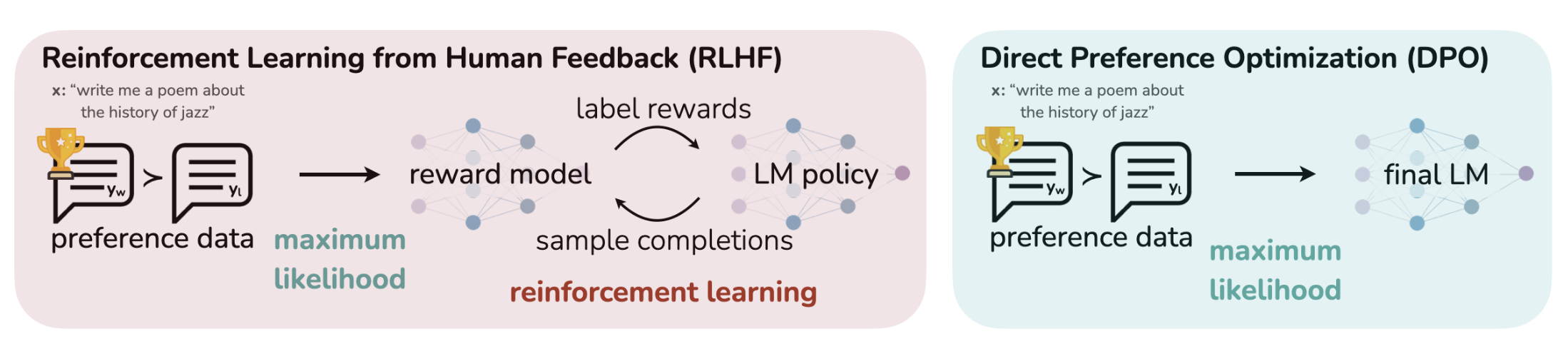

Fig. 31 DPO compared to traditional RLHF. Note the simplicity of the direct update which bypasses the need for an explicit reward model. RSM+24#

DPO is particularly useful when we are training a model to meet human preferences, especially as it simplifies the human feedback process to a simpler binary choice.

Imports and Setup#

Hide code cell content


import sys
import os
import copy
import torch
import torch.optim as optim
from cleanllm.rl.dpo import run_dpo_episodes, load_dpo_checkpoint
from cleanllm.data.data_loader import CharacterTokenizer
from cleanllm import pretrain
import matplotlib.pyplot as plt

# Ensure plots are displayed in the notebook
%matplotlib inline

Configuration and Initialization#

Hide code cell content


# Set a seed for reproducibility
torch.manual_seed(42)

# --- Setup ---
device = torch.device("cuda" if torch.cuda.is_available() else "cpu")
print(f"Using device: {device}")

tokenizer = CharacterTokenizer()

Using device: cpu

Model#

Just like in our PPO and GRPO examples, we load our pre-trained “food” model. This model is loaded twice: once for the policy model (which we will fine-tune) and again for the reference model (which remains frozen).

sft_model_path = "models/people_food_5000_v3.pt"
policy = pretrain.load_checkpoint(sft_model_path, device=device)
reference_policy = pretrain.load_checkpoint(sft_model_path, device=device)

Initial Sampling#

We run some initial sampling to check the prevalence of Ravin’s liking of pizza. Consistent with our training data, the base model completes the prompt with “pizza” around 10% to 20% of the time. This gives us a baseline to compare against after DPO training.

prompt = "ravin likes "

for _ in range(10):
    final_output = policy.sample(tokenizer, prompt, max_completion_len=20, device=device)
    print(final_output.text)

ravin likes applesE
ravin likes ice creamE
ravin likes sodaE
ravin likes cookiesE
ravin likes lettuceE
ravin likes applesE
ravin likes lettuceE
ravin likes ice creamE
ravin likes donutsE
ravin likes saladE

pizza_bool = []
prompt = "ravin likes "

for _ in range(100):
    final_output = policy.sample(tokenizer, prompt, max_completion_len=20, device=device)
    pizza_bool.append("pizza" in final_output.text)

initial_pizza_freq = torch.tensor(pizza_bool, dtype=torch.float).mean()
print(f"Initial pizza frequency: {initial_pizza_freq:.2%}")

Initial pizza frequency: 10.00%

Synthetic Preference Data Generation#

DPO requires a dataset of preference pairs, where each item consists of a prompt, a chosen completion, and a rejected completion. For real-world applications, this data would typically come from human labelers.

For this educational example, we’ll synthetically generate our preference data. We’ll define a simple reward function and use it to label sampled completions as “chosen” or “rejected”. ending in “pizza” gets a high reward.

Creating the Preference Dataset#

Now, we’ll generate 100 preference pairs. For each, we sample two different completions for the same prompt, use our reward function to determine which is chosen and which is rejected, and add them to our dataset.

preference_dataset = []
chosen_completion = "pizza"
# Generate 100 examples for our dataset
for _ in range(100):
    # This is our preferred completion so we set it to enable while loop.
    rejected_completion = "pizza"

    # Ensure rejected completion is not "pizza" and is not empty
    while "pizza" == rejected_completion:
        rejected_output = policy.sample(tokenizer, prompt, max_completion_len=10, device=device)
        # Clean up the end-of-sequence token for a more natural string
        rejected_completion = rejected_output.completion.replace(tokenizer.eos_token, "")

    preference_dataset.append({
        "prompt": prompt,
        "chosen": chosen_completion,
        "rejected": rejected_completion,
    })

preference_dataset[:10]

[{'prompt': 'ravin likes ', 'chosen': 'pizza', 'rejected': 'cookies'},
 {'prompt': 'ravin likes ', 'chosen': 'pizza', 'rejected': 'salad'},
 {'prompt': 'ravin likes ', 'chosen': 'pizza', 'rejected': 'cookies'},
 {'prompt': 'ravin likes ', 'chosen': 'pizza', 'rejected': 'lettuce'},
 {'prompt': 'ravin likes ', 'chosen': 'pizza', 'rejected': 'ice cream'},
 {'prompt': 'ravin likes ', 'chosen': 'pizza', 'rejected': 'soda'},
 {'prompt': 'ravin likes ', 'chosen': 'pizza', 'rejected': 'soda'},
 {'prompt': 'ravin likes ', 'chosen': 'pizza', 'rejected': 'donuts'},
 {'prompt': 'ravin likes ', 'chosen': 'pizza', 'rejected': 'apples'},
 {'prompt': 'ravin likes ', 'chosen': 'pizza', 'rejected': 'donuts'}]

DPO Implementation#

The core of DPO is its loss function, which directly uses preference pairs to adjust the policy. It aims to increase the relative log-probability of the chosen completion over the rejected one.

The simplified loss function is: loss = -log_sigmoid(β * (log_π_policy(chosen) - log_π_policy(rejected)) - (log_π_ref(chosen) - log_π_ref(rejected)))

Where:

  • β is a hyperparameter controlling the strength of the preference signal.

  • log_π_policy is the log-probability of a sequence from the policy model.

  • log_π_ref is the log-probability from the reference model.

For the precise steps, I refer you to the full DPO Implementation and tests.

Run DPO Training#

With our preference dataset, we can now run the DPO training loop. We’ll train for several epochs since our dataset is small.

lr = 5e-5
policy_optimizer = optim.Adam(policy.parameters(), lr=lr)

updated_policy, all_dpo_outputs = run_dpo_episodes(
    num_epochs=200,
    preference_dataset=preference_dataset,
    policy=policy,
    reference_policy=reference_policy,
    policy_optimizer=policy_optimizer,
    tokenizer=tokenizer,
    beta=0.8,
    print_every=10,
    checkpoint_dir="./temp/dpo/pizza",
    checkpoint_every=100
)

2025-12-29 14:09:51,113 - INFO - Epoch 10/200 | Loss: 0.0039
2025-12-29 14:09:51,135 - INFO - Sample completion: ravin likes pizzattutudE
2025-12-29 14:10:06,117 - INFO - Epoch 20/200 | Loss: 0.0017
2025-12-29 14:10:06,128 - INFO - Sample completion: ravin likes srodaE
2025-12-29 14:10:21,225 - INFO - Epoch 30/200 | Loss: 0.0008
2025-12-29 14:10:21,237 - INFO - Sample completion: ravin likes pizzaE
2025-12-29 14:10:36,018 - INFO - Epoch 40/200 | Loss: 0.0002
2025-12-29 14:10:36,031 - INFO - Sample completion: ravin likes pizzdaE
2025-12-29 14:10:50,479 - INFO - Epoch 50/200 | Loss: 0.0000
2025-12-29 14:10:50,489 - INFO - Sample completion: ravin likes pizzaE
2025-12-29 14:11:05,416 - INFO - Epoch 60/200 | Loss: 0.0000
2025-12-29 14:11:05,427 - INFO - Sample completion: ravin likes pizzaE
2025-12-29 14:11:19,931 - INFO - Epoch 70/200 | Loss: 0.0000
2025-12-29 14:11:19,942 - INFO - Sample completion: ravin likes pizzaE
2025-12-29 14:11:34,494 - INFO - Epoch 80/200 | Loss: 0.0000
2025-12-29 14:11:34,505 - INFO - Sample completion: ravin likes atpizE
2025-12-29 14:11:49,131 - INFO - Epoch 90/200 | Loss: 0.0000
2025-12-29 14:11:49,143 - INFO - Sample completion: ravin likes pizzaE
2025-12-29 14:12:03,677 - INFO - Epoch 100/200 | Loss: 0.0000
2025-12-29 14:12:03,688 - INFO - Sample completion: ravin likes pizzaE
2025-12-29 14:12:03,695 - INFO - Saved DPO checkpoint to ./temp/dpo/pizza/dpo_checkpoint_epoch_100.pt
2025-12-29 14:12:03,695 - INFO - Saved Checkpoint ./temp/dpo/pizza/dpo_checkpoint_epoch_100.pt
2025-12-29 14:12:18,864 - INFO - Epoch 110/200 | Loss: 0.0000
2025-12-29 14:12:18,875 - INFO - Sample completion: ravin likes pwateE
2025-12-29 14:12:34,143 - INFO - Epoch 120/200 | Loss: 0.0000
2025-12-29 14:12:34,153 - INFO - Sample completion: ravin likes pizzE
2025-12-29 14:12:49,113 - INFO - Epoch 130/200 | Loss: 0.0000
2025-12-29 14:12:49,124 - INFO - Sample completion: ravin likes pizzaE
2025-12-29 14:13:03,675 - INFO - Epoch 140/200 | Loss: 0.0000
2025-12-29 14:13:03,698 - INFO - Sample completion: ravin likes lattutututmE
2025-12-29 14:13:18,221 - INFO - Epoch 150/200 | Loss: 0.0000
2025-12-29 14:13:18,227 - INFO - Sample completion: ravin likes sE
2025-12-29 14:13:32,758 - INFO - Epoch 160/200 | Loss: 0.0000
2025-12-29 14:13:32,770 - INFO - Sample completion: ravin likes pizzaE
2025-12-29 14:13:47,294 - INFO - Epoch 170/200 | Loss: 0.0000
2025-12-29 14:13:47,306 - INFO - Sample completion: ravin likes pizzaE
2025-12-29 14:14:02,089 - INFO - Epoch 180/200 | Loss: 0.0000
2025-12-29 14:14:02,101 - INFO - Sample completion: ravin likes pizzaE
2025-12-29 14:14:16,621 - INFO - Epoch 190/200 | Loss: 0.0000
2025-12-29 14:14:16,632 - INFO - Sample completion: ravin likes pizzaE
2025-12-29 14:14:31,235 - INFO - Epoch 200/200 | Loss: 0.0000
2025-12-29 14:14:31,247 - INFO - Sample completion: ravin likes pizzaE
2025-12-29 14:14:31,255 - INFO - Saved DPO checkpoint to ./temp/dpo/pizza/dpo_checkpoint_epoch_200.pt
2025-12-29 14:14:31,255 - INFO - Saved Checkpoint ./temp/dpo/pizza/dpo_checkpoint_epoch_200.pt
2025-12-29 14:14:31,255 - INFO - Training CompleteEpoch 200/200 | Loss: 0.0000

Sampling the last checkpoint. Things work!#

If we sample the last checkpoint, we should see a strong preference towards “pizza”, showing that our training worked!

for _ in range(20):
    final_output = updated_policy.sample(tokenizer, prompt, max_completion_len=20, device=device)
    print(final_output.text)

ravin likes pizzaE
ravin likes pizzaE
ravin likes pizzaE
ravin likes pizzPE
ravin likes lattutututpiE
ravin likes pizjE
ravin likes wattuteE
ravin likes pizzaE
ravin likes pizzaE
ravin likes pizzaE
ravin likes pizzaE
ravin likes pizzayE
ravin likes pizzatpizvaE
ravin likes pizzaE
ravin likes pizzaE
ravin likes pizzaE
ravin likes pizzaE
ravin likes pizzaE
ravin likes sE
ravin likes pizzaE

To be sure, we can run 100 samples and again confirm the reinforcement-tuned model emits the completion “pizza” much more frequently than any other completion.

pizza_bool = []
prompt = "ravin likes "

for _ in range(100):
    final_output = policy.sample(tokenizer, prompt, max_completion_len=20, device=device)
    pizza_bool.append("pizza" in final_output.text)

final_pizza_freq = torch.tensor(pizza_bool, dtype=torch.float).mean()
print(f"Final pizza frequency: {final_pizza_freq:.2%}")

Final pizza frequency: 75.00%

DPO Diagnostic Metrics#

Verifying the end generations is always good, but we also want to check one layer deeper to ensure the lower-level details are working correctly. For DPO, the primary metric is the loss itself.

DPO Loss#

  • What it is: The DPO loss measures how well the policy model is distinguishing between the chosen and rejected responses compared to the reference model.

  • Why we track it: It is the primary indicator of learning. A decreasing loss means the policy is successfully learning to increase the relative probability of preferred sequences.

  • What to look for: A steady, downward trend. This indicates that the model is learning the preferences from the dataset. High volatility or a stagnant loss might indicate issues with the learning rate, the beta hyperparameter, or the quality of the preference data itself.

Diagnostic Plots#

With the metrics defined, we can plot them for our training run. We will plot the DPO loss over the training steps. The plot should show a general downward trend, confirming that the policy is learning from the preference pairs.

losses = [output.total_loss for output in all_dpo_outputs]
plt.figure(figsize=(10, 5))
plt.plot(losses)
plt.title("DPO Loss Over Training Steps")
plt.xlabel("Training Step")
plt.ylabel("DPO Loss")
plt.grid(True)
plt.show()
../../_images/783263e1c05cc75d01d9d813b3f61bb543c64c6e0f31997bead204e8dd66a61c.png

Load An Earlier Checkpoint#

filepath = "temp/dpo/pizza/dpo_checkpoint_epoch_100.pt"

policy_step_100, _, _ = load_dpo_checkpoint(filepath)

2025-12-29 14:14:32,767 - INFO - Loaded DPO checkpoint from temp/dpo/pizza/dpo_checkpoint_epoch_100.pt, at episode 100

pizza_bool = []
prompt = "ravin likes "

for _ in range(100):
    final_output = policy_step_100.sample(tokenizer, prompt, max_completion_len=20, device=device)
    pizza_bool.append("pizza" in final_output.text)

torch.tensor(pizza_bool, dtype=torch.float).mean()

tensor(0.6800)

Suggested Prompts#

  • What are the main advantages of DPO compared to PPO-based RLHF?

  • When would a full reward model still be preferable to using DPO?

  • How does the beta hyperparameter affect DPO training?
